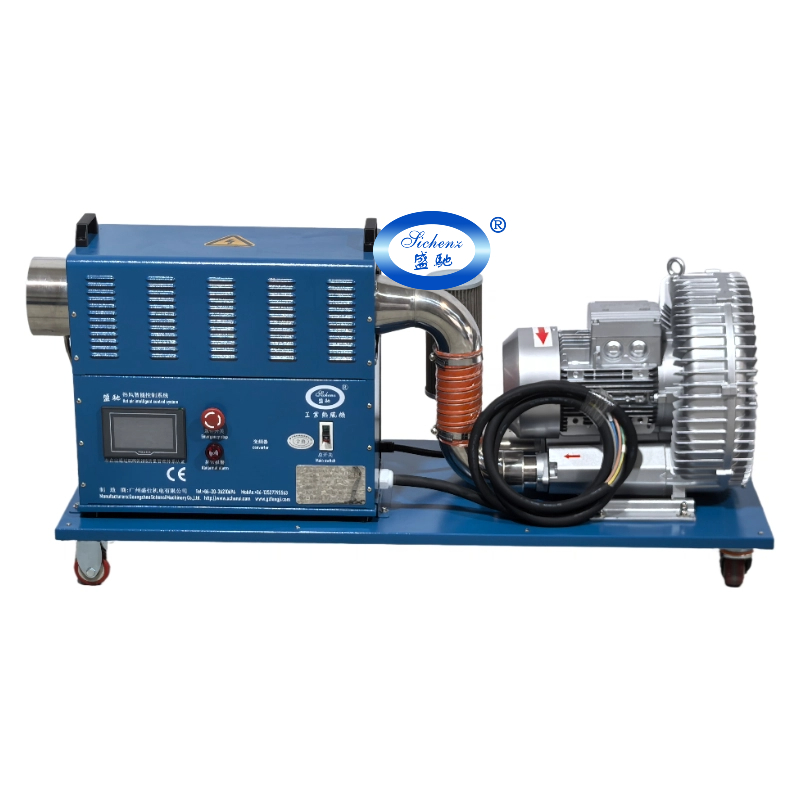

model: HAM-HPY10A-31-IC
specifications: E3380-10D-2.2
Rated voltage: Three phase 380V
frequency: 50Hz
Electric heating power: 10KW
Motor power: 2.2KW
Air inlet temperature: ordinary temperature
Air outlet temperature: ordinary temperature~350℃
Maximum air volume: 265m3/h
Maximum wind pressure: 2200Pa
Size(L*W*H) : 1200*460*410(mm)
notes: Please inform the local usage voltage and frequency when ordering products. The voltage used in China is ：single-phase 220V/three-phase 380V/frequency 50Hz
Shengchi Intelligent Industrial Hot Air Blower Overview：
The Shengchi Intelligent Industrial Hot Air Blower is a modern industrial heat solution that integrates efficient heating, precise temperature control, intelligent operation, and safety & stability. It significantly enhances the human-machine interaction experience by replacing traditional physical buttons and digital tube displays with a large color touchscreen, making equipment operation more intuitive, simple, and modern. It is primarily aimed at industrial application scenarios with high requirements for temperature control accuracy, operational convenience, and production automation.
Through precise PID temperature control and programmable automation functions, the Shengchi Intelligent Industrial Hot Air Blower elevates the user experience and process control level of industrial hot air equipment to a new height. For enterprises pursuing production efficiency, product quality, and operational modernization, this is a highly cost-effective device well worth considering.
Shengchi Hot Air Blower Introduction：
The Shengchi Hot Air Blower is a product developed through our comprehensive research and assimilation of internationally leading technologies. It is the preferred choice for upgrading modern industrial heat sources and is widely used across various industries such as electronics, food, pharmaceuticals, printing, packaging, cleaning, and heat treatment. It has excellent application prospects and is the optimal hot air source configuration for automated machinery in the hot air drying industry.
It possesses the following characteristics:
l Wind Tunnel Effect Design:
Cold air passes uniformly inside/outside the spiral heating wire, resulting in high heat exchange efficiency.
l Non-Magnetic Pure 2080 Nickel-Chromium Wire:
Does not produce exhaust gas or special odors, complying with environmental standards.
l PID/SSR Control:
Ensures precise temperature control, fast feedback, and long-lasting durability.
l Multiple Overheat & Overload Protections:
Special heat insulation ensures safe and reliable operation, capable of running non-stop 365 days a year.
l Circulation Type:
Uses a patented heat dissipation design, allowing a continuous air inlet temperature of up to 230°C.
l Standard Type:
Uses an inverter to adjust motor speed for airflow regulation, ensuring energy savings and accurate control.
l Dedicated Temperature Control Equipment:
The switch and temperature control unit can be installed on the blower surface or controlled remotely via PLC for easy operation.
l High Precision:
Shengchi Hot Air Blower temperature control accuracy reaches within ±0.5 degrees.
Core Advantages of Shengchi Intelligent Industrial Hot Air Blower:
l Intelligent Touch Control Interface (The Core Highlight):
Features a large color touchscreen displaying rich, clear information. The graphical interface eliminates complex codes and button combinations—all parameter settings are made via intuitive icons, menus, and numeric keypads, as simple as using a smartphone.
l Energy Efficient & High Performance:
Heats air directly with a heat conversion rate exceeding 95%, making it more energy-efficient than traditional electric heaters.
l Instant Heat:
Requires no preheating; outputs hot air within minutes of startup, suitable for situations requiring rapid temperature rise.
l Safe & Reliable:
Equipped with overheating protection, automatic power-off, and anti-scald housing, reducing fire risks.
l Versatile & Flexible:
Applicable in multiple scenarios (space heating, electronics drying, industrial fields...), meeting diverse needs.
l Environmentally Friendly & Low Noise:
No combustion exhaust emissions, utilizes low-noise motors.
l Durable & Easy Maintenance:
Simple structure, low failure rate, and long service life.
l Adjustable Temperature:
Precise temperature control, range from ambient temperature up to 350°C.
l Supports Multi-Stage Temperature Programming:
Ideal for production processes requiring specific temperature curves.
l Customizable Production:
Can be customized according to client requirements.

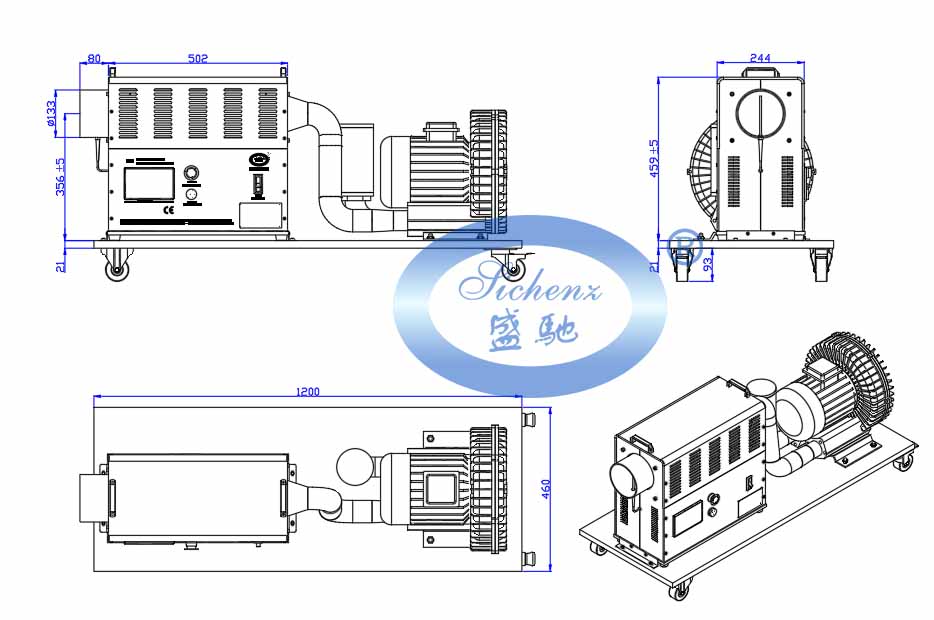

Shengchi Intelligent Industrial Hot Air Blower - Production Drawings：
Applications: This equipment serves as the optimal heat source for replacing coal and oil-fired drying systems, with primary uses including material heat treatment processing, motor moisture-proof and insulation drying, instrument drying, and conveyor line heating and drying.
