Product Overview

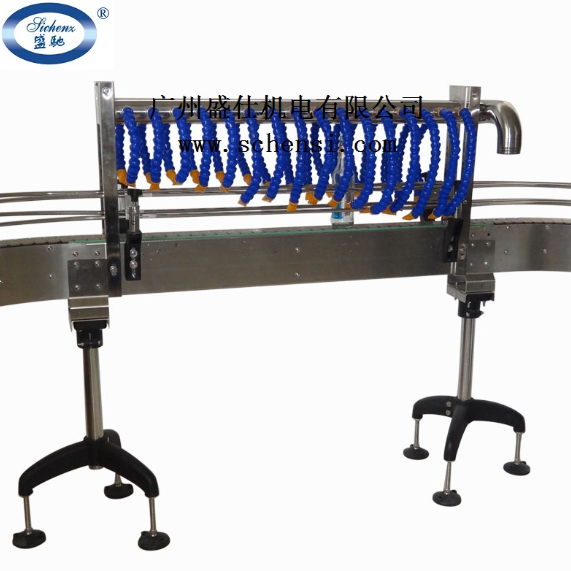

Sheng chi Wind Knife Drying Machine

1\Sheng chi Air Knife Dryer, also known as the Sheng chi Air Knife Dryer. It adopts internationally leading wind blade technology, with stable performance, low temperature operation, high visibility, good drying effect, small footprint, compact structure, and beautiful appearance. The wind blade can be adjusted at any angle, and the size of the air outlet can be adjusted according to customer production needs, with simple operation. Especially suitable for use on medium to high speed automated production lines. It is the most ideal drying equipment on the packaging line.

2\The Sheng chi Wind Knife Drying Machine has been successfully applied to blow dry the surface moisture of bottles/cans on domestic and foreign production lines. It is currently the most ideal drying equipment on the packaging line of alcoholic beverages. Mainly aimed at effectively drying the filling liquid on the outer surface of wine and beverage bottles after filling or the spray water on the outer surface of bottles after sterilization by a sterilizer. The Sheng chi air knife dryer does not require an additional electric heating device, but can achieve an effect where the temperature of the air knife outlet is 15 ℃ higher than normal temperature, greatly improving the final drying effect of the bottle. After repeated technological breakthroughs, research, and experimentation, we have adopted patented air knives and launched the high-performance Sheng chi air knife style drying machine.

3\Characteristics of Sheng chi Air Knife Drying Machine: 1. The air knife dryer adopts a patented design air knife, designed according to the principle of wind tunnel, introducing high-speed wind into a specially designed wind groove to cause wind tunnel effect, achieving the effect of quickly removing water on the surface of bottles/cans with extremely high wind speed. It replaces high power (electric heating oven drying and air compressor combined with nozzle drying) with lower power (Sheng chi high-pressure blower combined with air knife for fast air cutting and drying), eliminating residual water stains, and especially showing energy-saving. 2. According to customer requirements, customized air ducts for blowing bottles/cans, top, neck, and bottom can be used to complete drying in one go and completely solve the problem of difficult drying of bottles/cans. 3. The design of the air duct adopts a device that can facilitate customers to adjust the diameter and height of corresponding bottles/cans. A system can meet the usage requirements of different specifications of bottles/cans, which can save investment. 4. The air duct and multiple other accessories are made of 304 stainless steel or 316L stainless steel, which fully meets food hygiene requirements; 5. Specially designed drainage and exhaust outlets for easy water intake and exhaust. The air duct adopts a transparent tempered glass sound-absorbing cover, which is convenient for observation and can reduce noise. 6. Using a Sheng chi high-pressure blower as the air source and equipped with a sound insulation cover can reduce fan noise.

4\The Sheng chi Wind Knife Drying Machine is one of the most efficient tools for drying the outer surface of bottles/cans. Adopting a patented stainless steel wind blade combined with a vortex high-pressure blower, the wind blade outlet is designed with a wind speed of over 130m/s and 15 ℃ higher than room temperature. Under the premise of this extremely fast and thin wind curtain, matching the corresponding number of wind blades according to the production line speed can quickly dry the water droplets on the outer surface of the bottle/can, ensuring that there is no water hidden inside the glass bottle cap, the label is clean, no bubbles are generated, and the spray code font is clearer.Innovative technologies have been adopted to improve working conditions and product quality requirements and meet customers' personalized expectations, which have been successfully applied to Pepsi Cola, Coca Cola, China Resources Snow Beer, Qingdao Beer, Blue Ribbon Beer, Budweiser InBev, Budweiser Beer, the Pearl River Beer, Dayao Beverage, Wahaha, Mengniu Dairy, Eurasian Dairy, Dinghu Mountain Spring, Robust Renowned industries such as Rizhiquan have packaging lines for bottle/can outer surface moisture drying production lines.

5\The Sheng chi wind knife drying machine can adapt to the fastest production capacity: 72000 bottles/hour; Suitable for bottle types: various irregular bottles, round bottles/cans, square bottles/cans; Adaptable maximum bottle height: 500mm; Applicable bottle diameter: Ф 265mm; External dimensions: customized according to the actual production line; Wind blade count: customized according to actual production line speed and drying requirements.

6\Shengchi Wind Knife Dryer is a successful product of our technological innovation, and it is also our profound understanding and response to customer needs.

FEATURES AT A GLANCE

FAQ

Q1：Are you a factory or a trading company?

A1：factory.

Q2：What is your warranty?

A2：1 year warranty, limited to the body of the aircraft and excluding consumables.

Q3：How do we ensure quality?

A3:Strictly follow the product process for production,conduct final inspection before shipment,and only package and ship afterpassing the inspection.

Q4:Can the product be customized according to the parameter requirements?

A4:Special models can be customized according tocustomer requirements. For more details, please consult our customer service personnel.

Successful Project
