Casting hot air fan HAM-G58.5A-ZX

model: HAM-G58.5A-ZX

specifications: E3380-58.5D-2.2

Rated voltage: Three phase 380V

frequency: 50Hz

Electric heating power: 58.5KW

Motor power: 2.2KW

Air inlet temperature: ordinary temperature

Air outlet temperature: ordinary temperature~350℃

Maximum air volume: 1260m3/h

Maximum wind pressure: 3585Pa

Size(L*W*H) : 1900*940*1280(mm)

notes: Please inform the local usage voltage and frequency when ordering products. The voltage used in China is ：single-phase 220V/three-phase 380V/frequency 50Hz;

Send Email Prev Product Next Product

Product details

Introduction to Shengchi Casting Hot Air Fan

Shengchi Mold Hot Air Fan is mainly used for mold and sand core drying, dehumidification, surface drying, maintaining the hot state of the mold and being able to remove moisture and moisture. It is particularly suitable for the overall on-site re baking and surface drying of large and medium-sized molds after box distribution, as a necessary equipment for the process when large and medium-sized molds are subjected to moisture, cold iron condensation, and cannot meet the casting process requirements after being divided into boxes and cores and baked in the mold furnace. This device has good thermal effect, low noise, and fast heat transfer. It is the most effective solution to optimize the casting process, ensure the quality of castings, especially to reduce (or eliminate) shrinkage porosity and eliminate porosity defects.

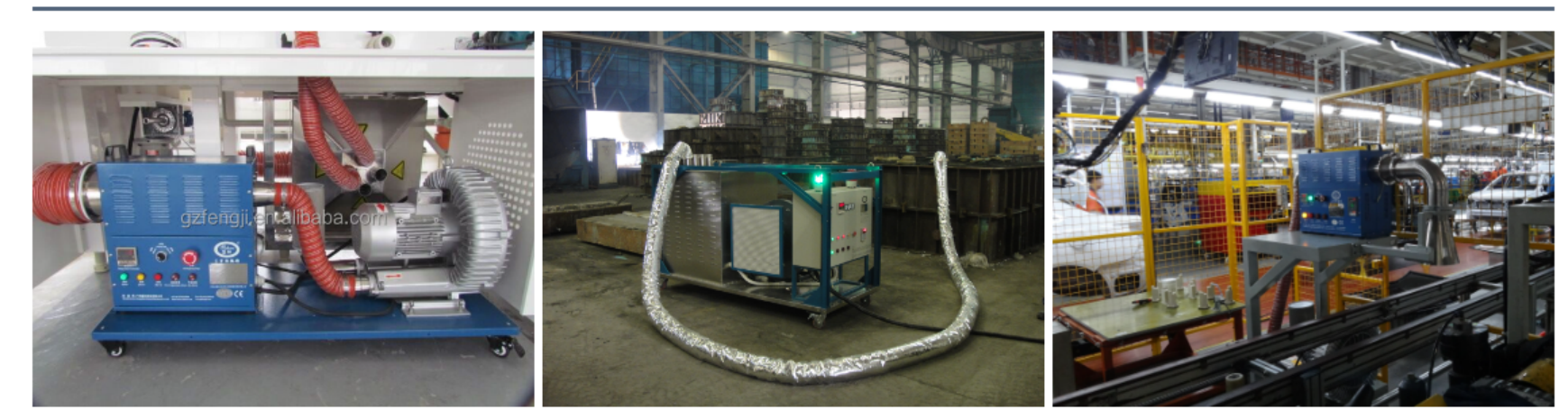

success cases

Guangzhou Shipyard, Shenyang Machine Tool, Qinchuan Foundry, New Northeast Electric Group, Shuangrui Wind Power, Shuanglun Group, CNNC Technology, Zibo Yaxiang Electromechanical, Beijing Nankou Rail Transit Machinery, Guangxi Zhongshan Great Wall Mining Machinery, Guilin Nanhua Heavy Machinery, Anwo (Foshan) Special Alloy Casting.

1，Reasonably designed based on wind tunnel effects, cold air passes evenly through both sides of the heating element, with high heat exchange rate and minimal loss of air volume and pressure;

2 ，Adopting specially customized high-temperature resistant stainless steel heating tubes, safe and reliable;

3，Equipped with multiple overheating and overload protection devices, as well as power outage protection, using high-temperature resistant ceramic fiber insulation, the chassis is made of all stainless steel, safe and reliable to use, and can operate continuously 365 days a year, ensuring safe operation;

4，The maximum operating temperature is 350 ℃;

5，Equipped with K-type thermocouples, controlled by PID/SSR, the temperature control accuracy reaches within ± 0.5 degrees, with fast feedback and long-lasting durability;

6，Optional variable frequency drive can be used to adjust the motor speed to meet the needs of accurately adjusting the air volume, allowing for more accurate control of temperature and air volume;

7，Can be equipped with medium/high pressure centrifugal fans to meet different air volume and pressure requirements;

8，Equipped with dedicated temperature control equipment, the switch and temperature control adjustment part and heating part adopt a separate design, ensuring that the control components can be used continuously under high temperature working conditions.

The specific model specifications need to be designed based on the specifications of the products cast by your company and the required temperature. For detailed plans, please contact our customer service.
