- Unit selection based on air volume Q: M3/H
- Select unit PA based on wind pressure
- Electric heating power unit KW
- Unit selection based on air volume Q: M3/H
- Based on suction selection, unit MBAR
- Based on pressure selection, unit MBAR

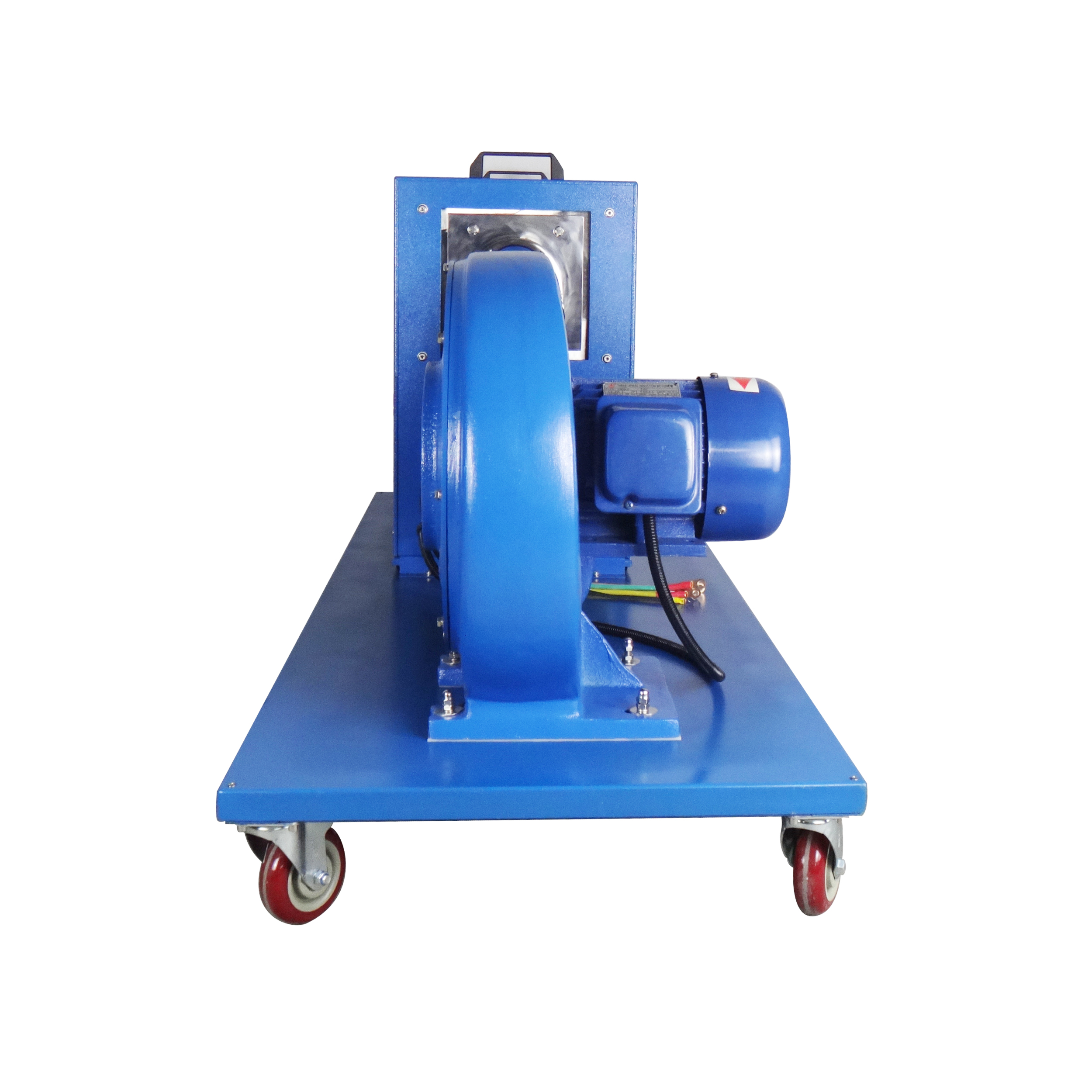

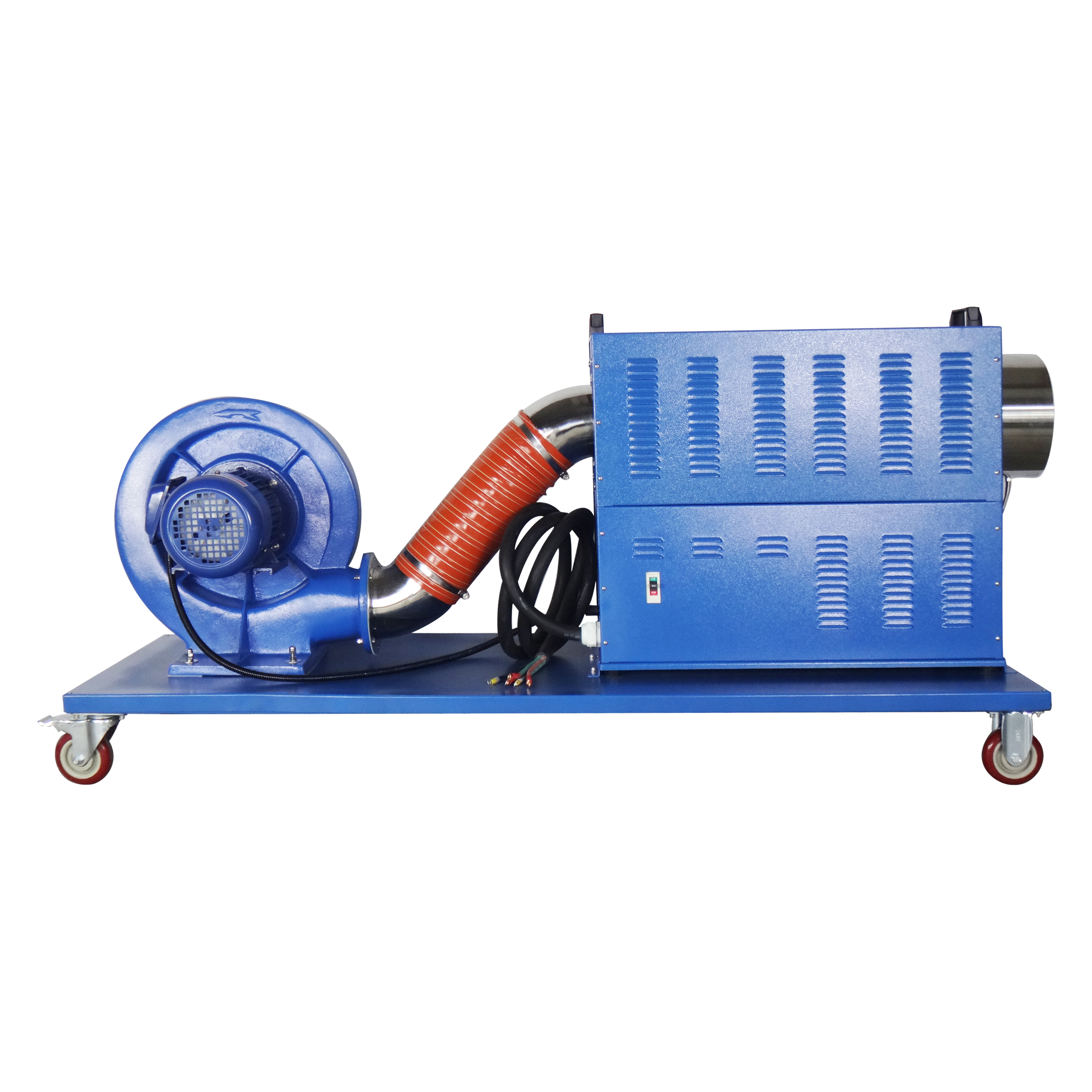

model: HAM-M60A-46
specifications: E3380-60D-3.0
Rated voltage: Three phase 380V
frequency: 50Hz
Electric heating power: 60KW
Motor power: 3KW
Air inlet temperature: ordinary temperature
Air outlet temperature: ordinary temperature~350℃
Maximum air volume: 1620m3/h
Maximum wind pressure: 2650Pa

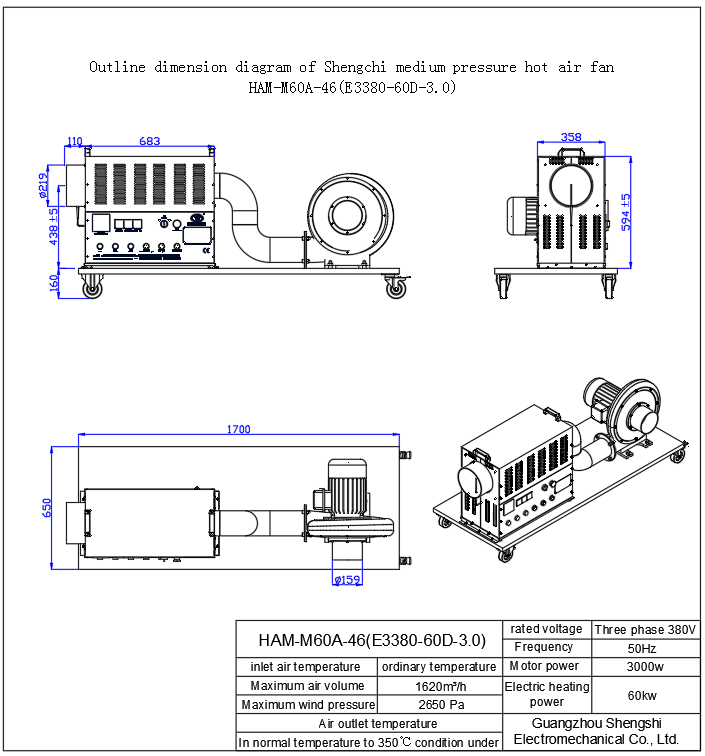

Size(L*W*H) : 1700*650*753(mm)
notes: Please inform the local usage voltage and frequency when ordering products. The voltage used in China is ：single-phase 220V/three-phase 380V/frequency 50Hz
