Product Name: Shengchi Industrial Standard Wind Knife
Air inlet specifications: ф 25 ф 38 ф 51 ф 63 ф 76 (outer diameter)
Product model: ST-S2
Air inlet position: Side ( 2)
Air outlet length: 50~3000mm
Air outlet width: 0.3~3mm
Adapt to gas source: High pressure fan, high pressure centrifugal fan
Customizable: Customizable according to requirements
Product Overview

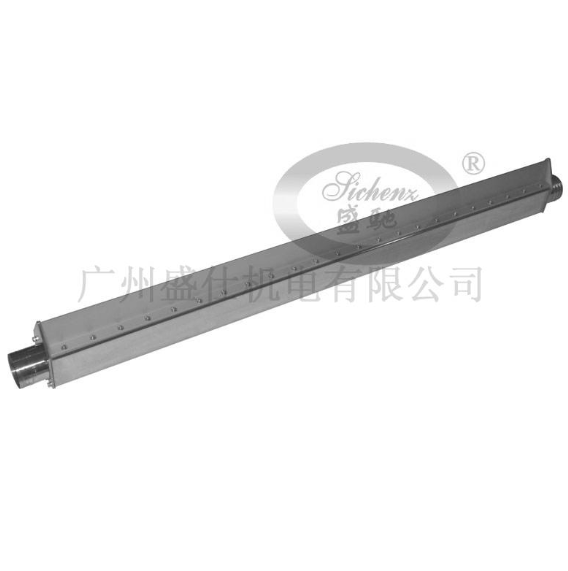

Sheng Chi Industrial air knife
Shengchi Wind Knife is made of stainless steel as the blade body, extruded with aluminum alloy and anodized blades, or made of all stainless steel 304/306L, with higher strength and precision; Unique structure, low wind resistance, uniform wind speed, and high accuracy; The width of the air outlet is adjustable, and the length of the air outlet can be customized according to customer requirements, with a length of up to 6M; The specifications and positions of the air inlet can be flexibly combined, and threaded or pagoda shaped air inlet can be used; Equipped with a Shengchi high-pressure blower as the air source, it can be used for rapid water cutting and drying.
Especially suitable for water drying in various processes such as glass cleaning machines, ultrasonic cleaning, circuit boards, electroplated parts, coatings, coatings, and non-ferrous metal plate/wire production in different industries; Can be used for barrier free isolation of harmful gases, dust, cold and hot air, printing paper blowing, and post printing drying; Can be used for rapid heating, thawing, and high-temperature sterilization of videos and medicine.
Shengchi Standard Wind Knife
The unique design of the structure mainly consists of a circular shaft air outlet, a wide and straight air duct, a splitter plate, a gradually narrowing air duct, and a section of a flat and narrow air duct. The width of the air duct is adjustable, which realizes the adjustable outlet wind speed, air volume, and air pressure, and has the characteristics of small wind resistance and small pressure loss.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Successful Project
FRQ
Q1：Are you a factory or a trading company?
A1：factory.
Q2：What is your warranty?
A2：1 year warranty, limited to the body of the aircraft and excluding consumables.
Q3：How do we ensure quality?
A3:Strictly follow the product process for production,conduct final inspection before shipment,and only package and ship afterpassing the inspection.
Q4:Can the product be customized according to the parameter requirements?
A4:Special models can be customized according tocustomer requirements. For more details, please consult our customer service personnel.
