- Unit selection based on air volume Q: M3/H
- Select unit PA based on wind pressure
- Electric heating power unit KW
- Unit selection based on air volume Q: M3/H
- Based on suction selection, unit MBAR
- Based on pressure selection, unit MBAR

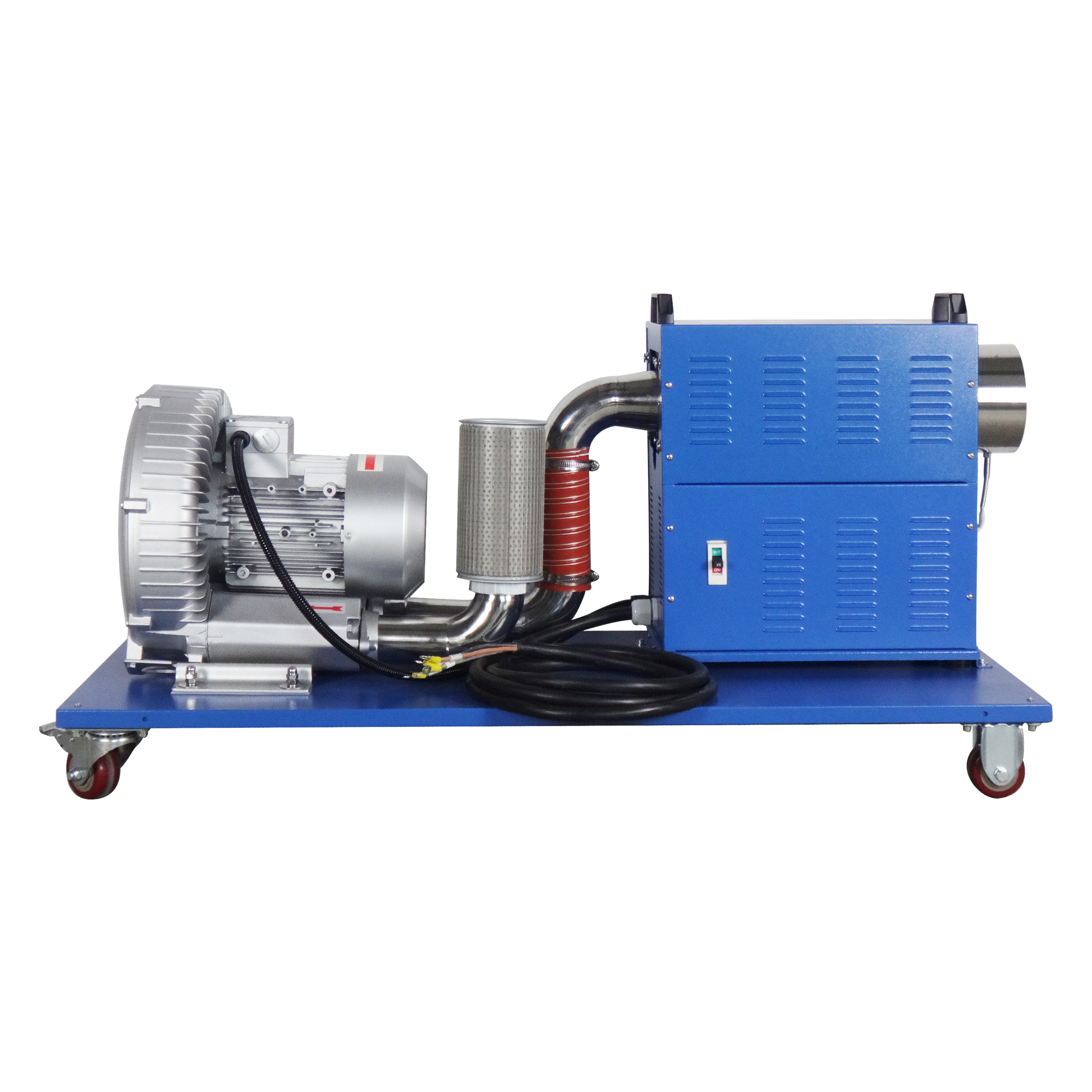

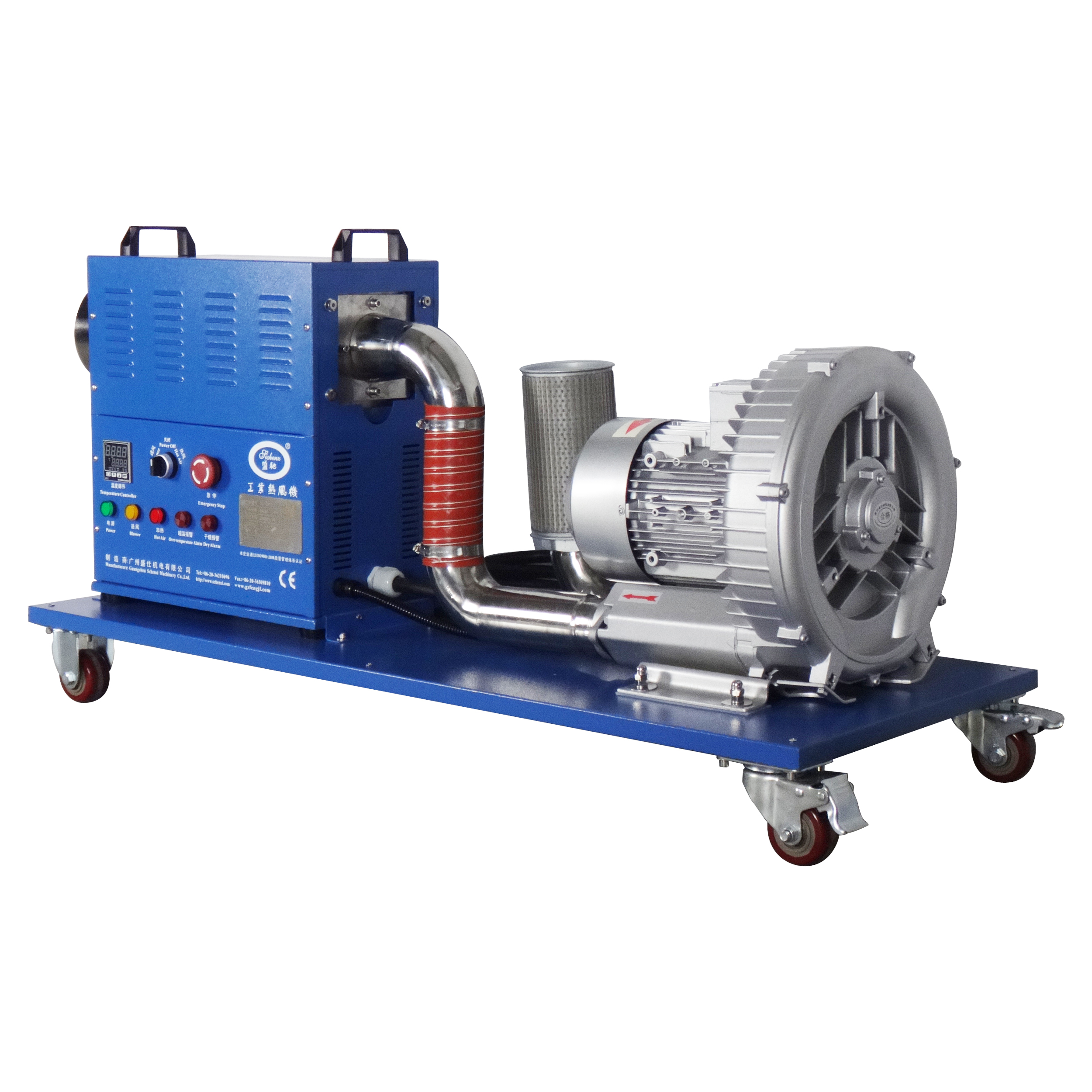

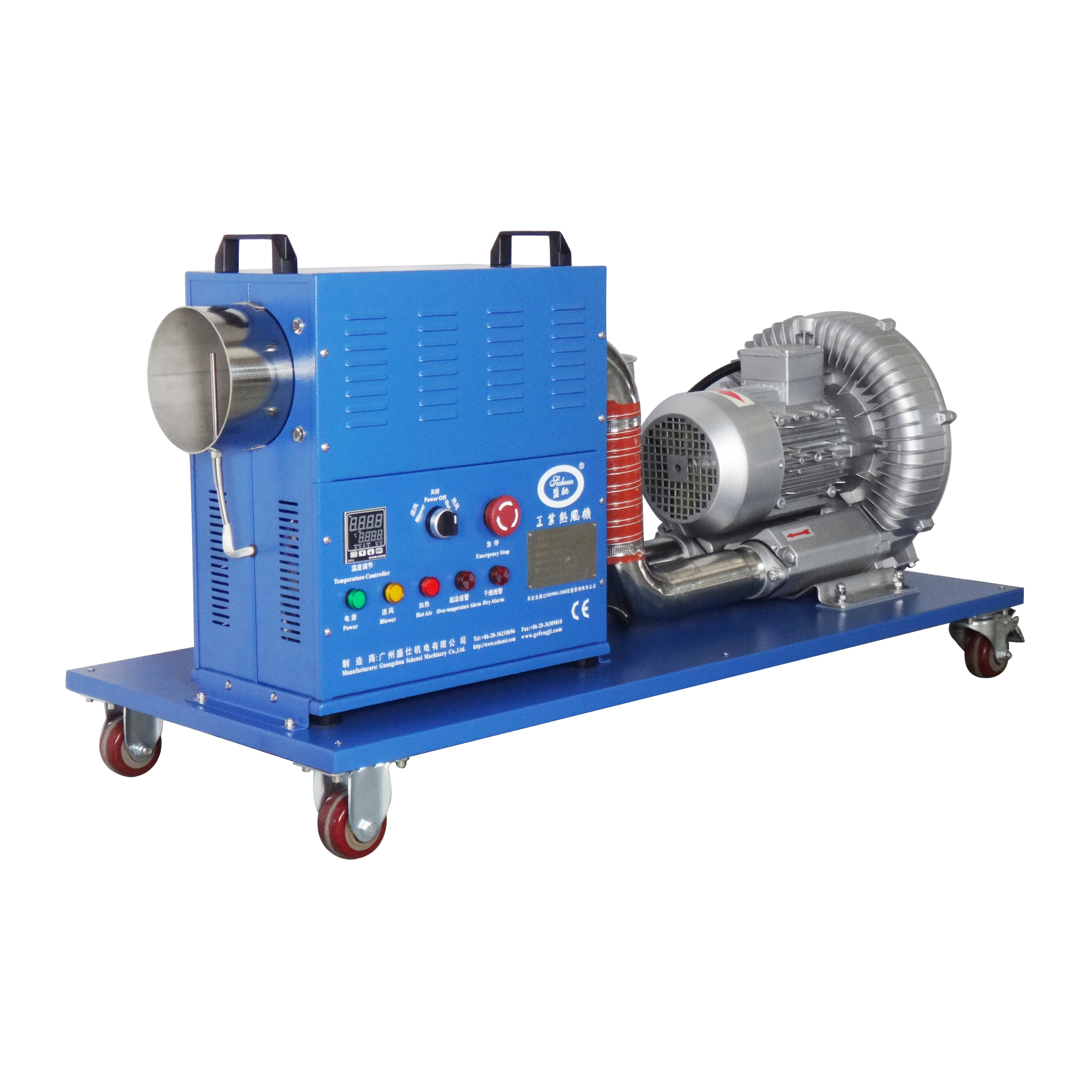

model: HAM-HPY7.5A-22
specifications: E3380-7.5D-1.5
Rated voltage: Three phase 380V
frequency: 50Hz
Electric heating power: 7.5KW
Motor power: 1.5KW
Air inlet temperature: ordinary temperature
Air outlet temperature: ordinary temperature~350℃
Maximum air volume: 210m3/h
Maximum wind pressure: 1700Pa

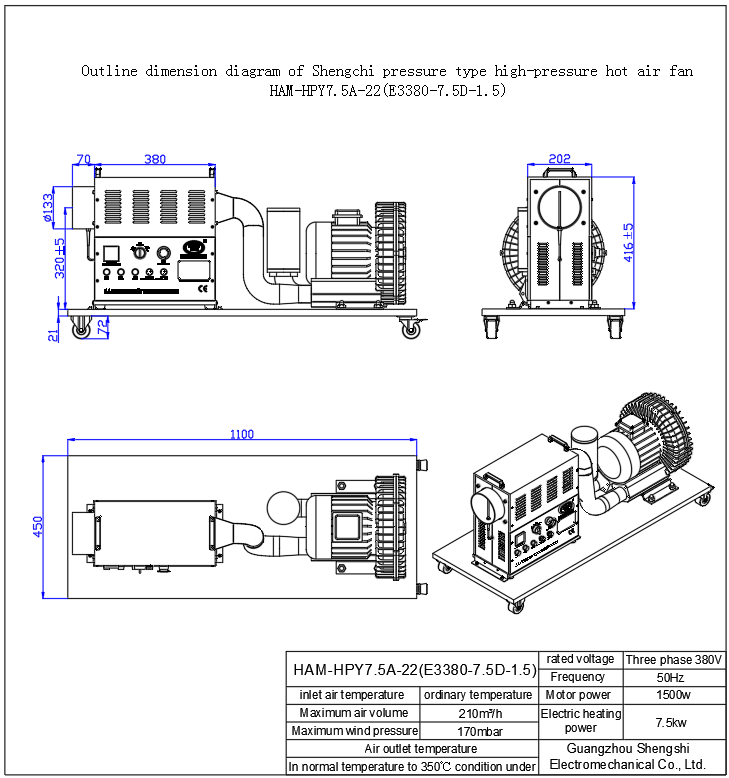

Size(L*W*H) : 1100*450*370(mm)
notes: Please inform the local usage voltage and frequency when ordering products. The voltage used in China is ：single-phase 220V/three-phase 380V/frequency 50Hz
