- Unit selection based on air volume Q: M3/H
- Select unit PA based on wind pressure
- Electric heating power unit KW
- Unit selection based on air volume Q: M3/H
- Based on suction selection, unit MBAR
- Based on pressure selection, unit MBAR

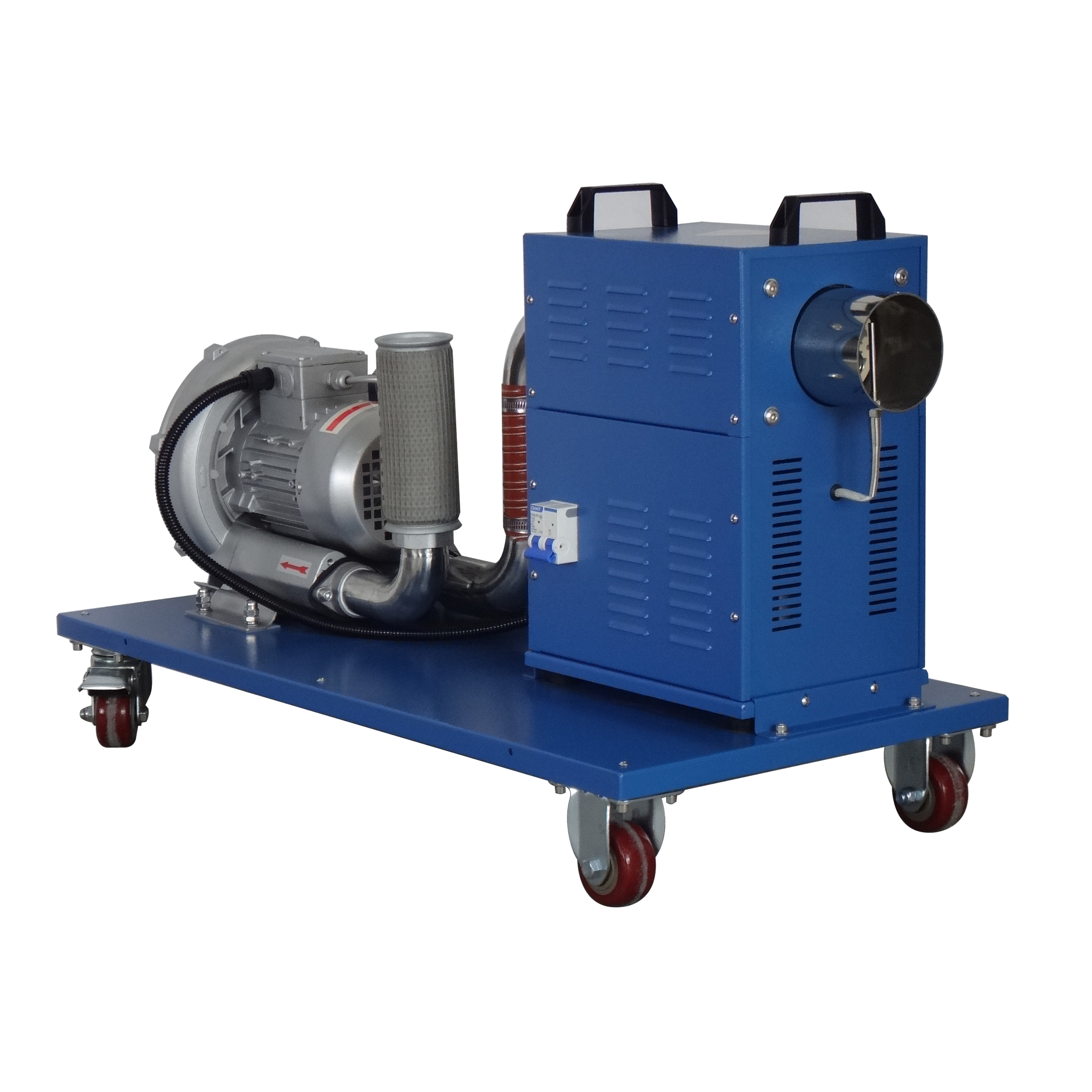

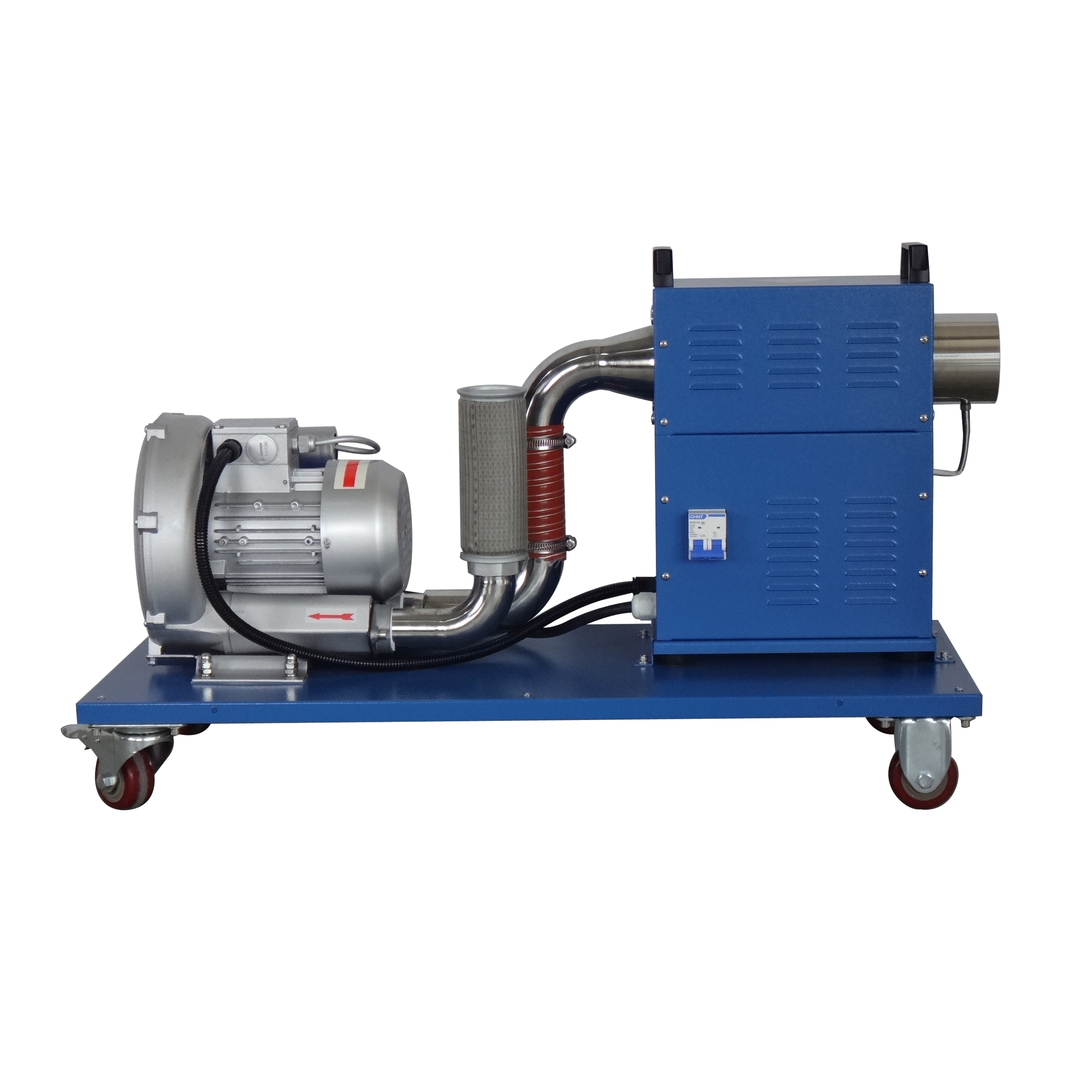

model: HAM-HPY3A-11
specifications: E1220-3D-037
Rated voltage: Single-phase 220V
frequency: 50Hz
Electric heating power: 3KW
Motor power: 370W
Air inlet temperature: ordinary temperature
Air outlet temperature: ordinary temperature~350℃
Maximum air volume: 80m3/h
Maximum wind pressure: 1100Pa

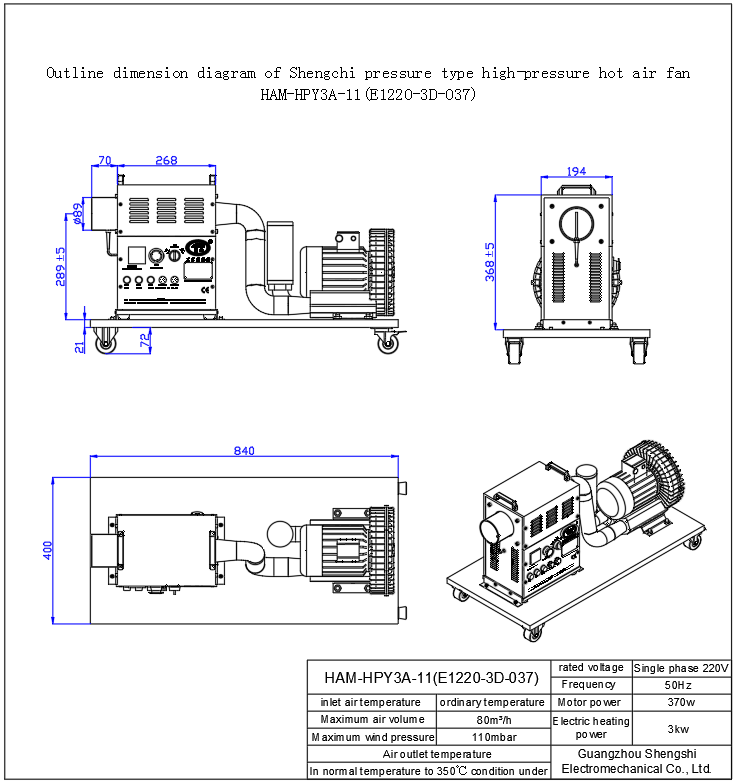

Size(L*W*H) : 840*400*330(mm)
notes: Please inform the local usage voltage and frequency when ordering products. The voltage used in China is ：single-phase 220V/three-phase 380V/frequency 50Hz
