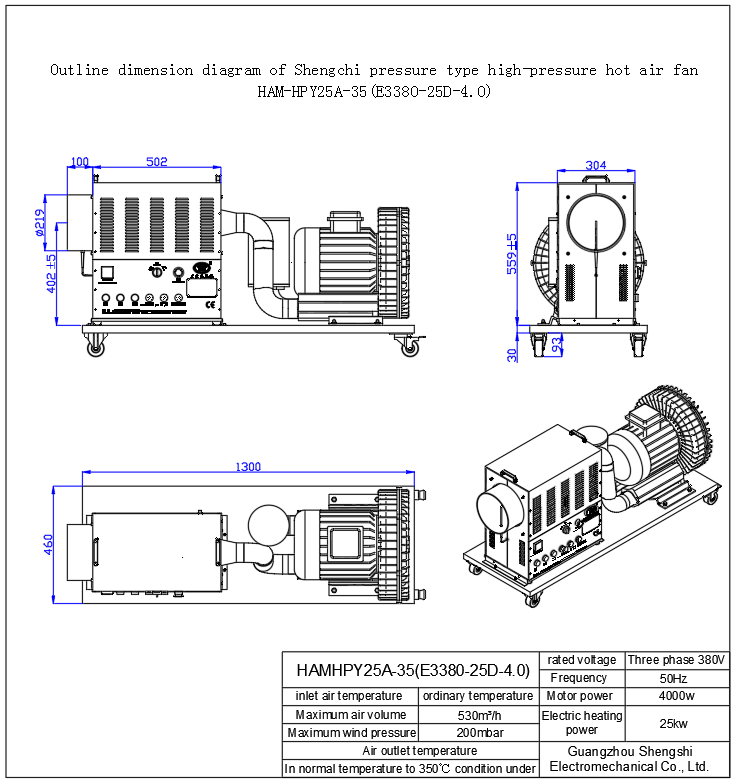

model: HAM-HPY25A-35
specifications: E3380-25D-4.0
Rated voltage: Three phase 380V
frequency: 50Hz
Electric heating power: 25KW
Motor power: 4KW
Air inlet temperature: ordinary temperature
Air outlet temperature: ordinary temperature~350℃
Maximum air volume: 530m3/h
Maximum wind pressure: 2000Pa
Size(L*W*H) : 1300*460*450(mm)
notes: Please inform the local usage voltage and frequency when ordering products. The voltage used in China is ：single-phase 220V/three-phase 380V/frequency 50Hz
