- Unit selection based on air volume Q: M3/H
- Select unit PA based on wind pressure
- Electric heating power unit KW
- Unit selection based on air volume Q: M3/H
- Based on suction selection, unit MBAR
- Based on pressure selection, unit MBAR

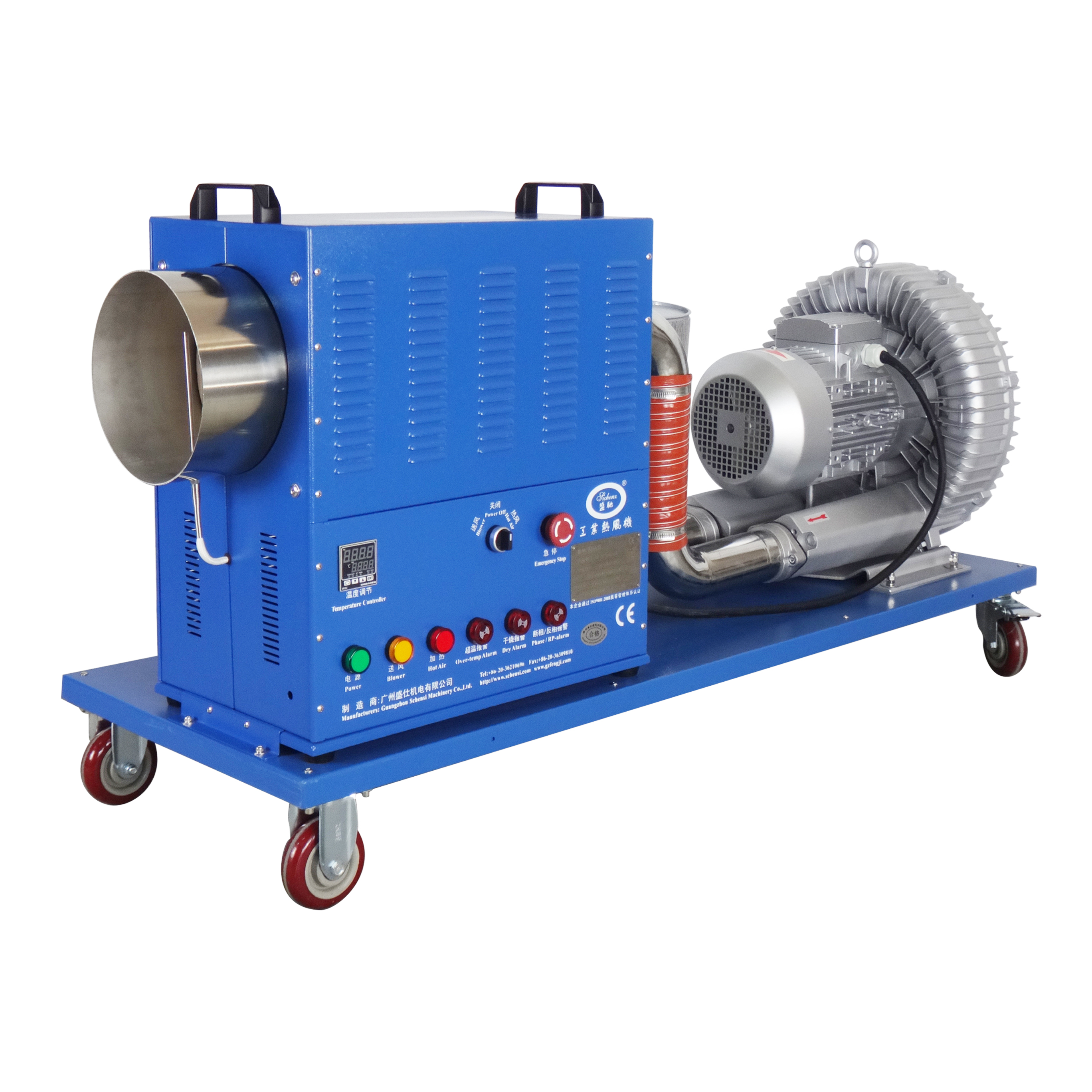

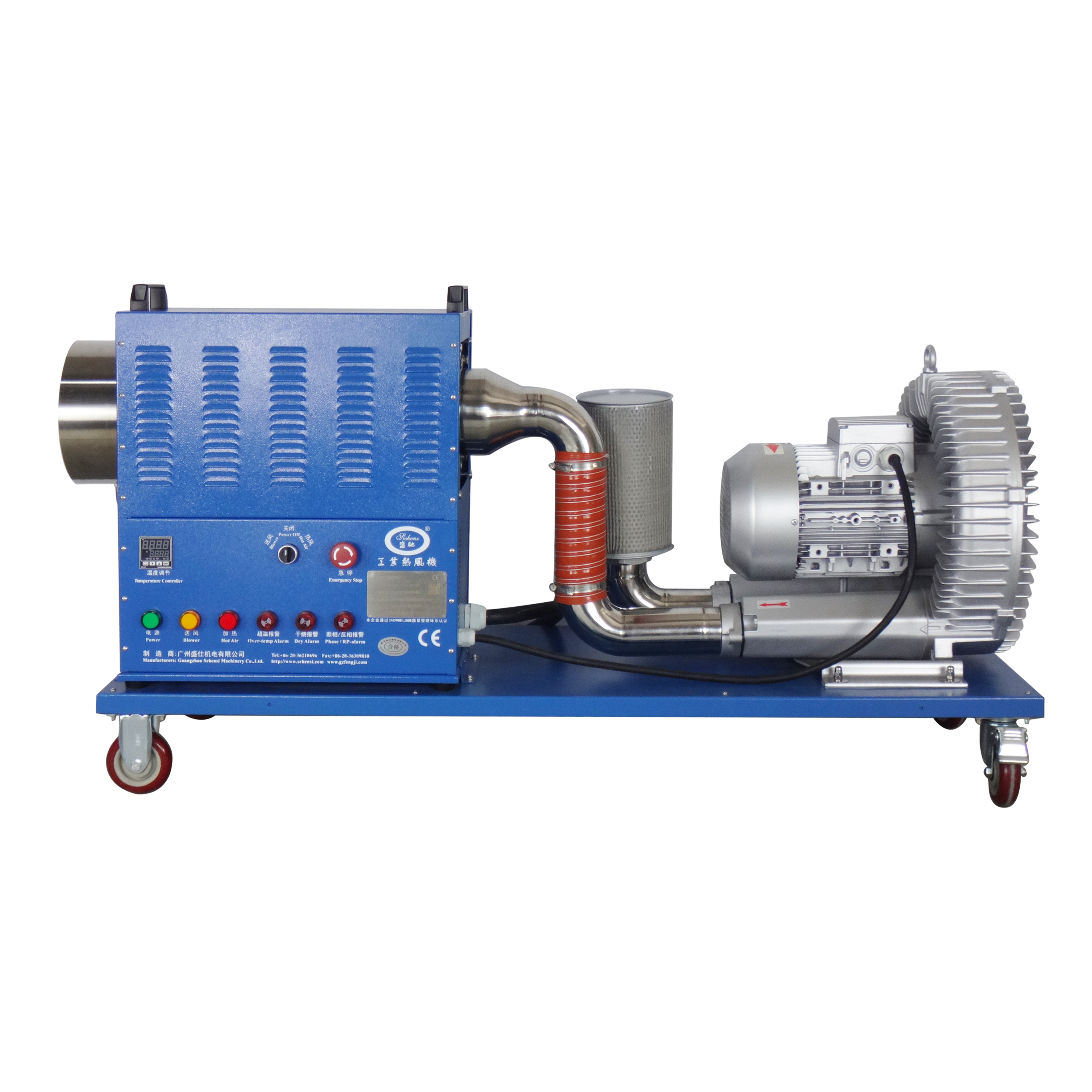

model: HAM-HPY20A-34
specifications: E3380-20D-4.0
Rated voltage: Three phase 380V
frequency: 50Hz
Electric heating power: 20KW
Motor power: 4KW
Air inlet temperature: ordinary temperature
Air outlet temperature: ordinary temperature~350℃
Maximum air volume: 530m3/h
Maximum wind pressure: 2000Pa

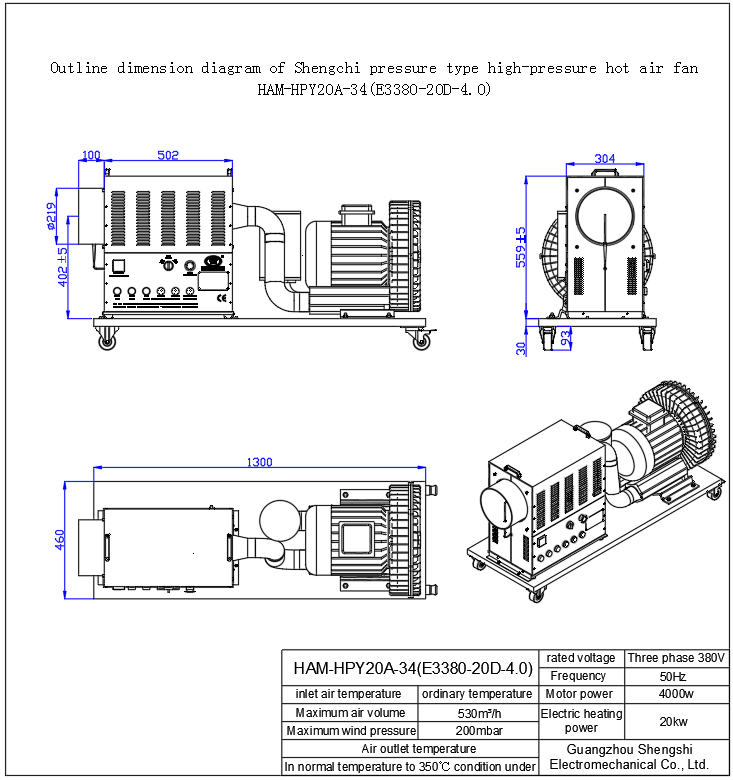

Size(L*W*H) : 1300*460*450(mm)
notes: Please inform the local usage voltage and frequency when ordering products. The voltage used in China is ：single-phase 220V/three-phase 380V/frequency 50Hz
