- Unit selection based on air volume Q: M3/H
- Select unit PA based on wind pressure
- Electric heating power unit KW
- Unit selection based on air volume Q: M3/H
- Based on suction selection, unit MBAR
- Based on pressure selection, unit MBAR

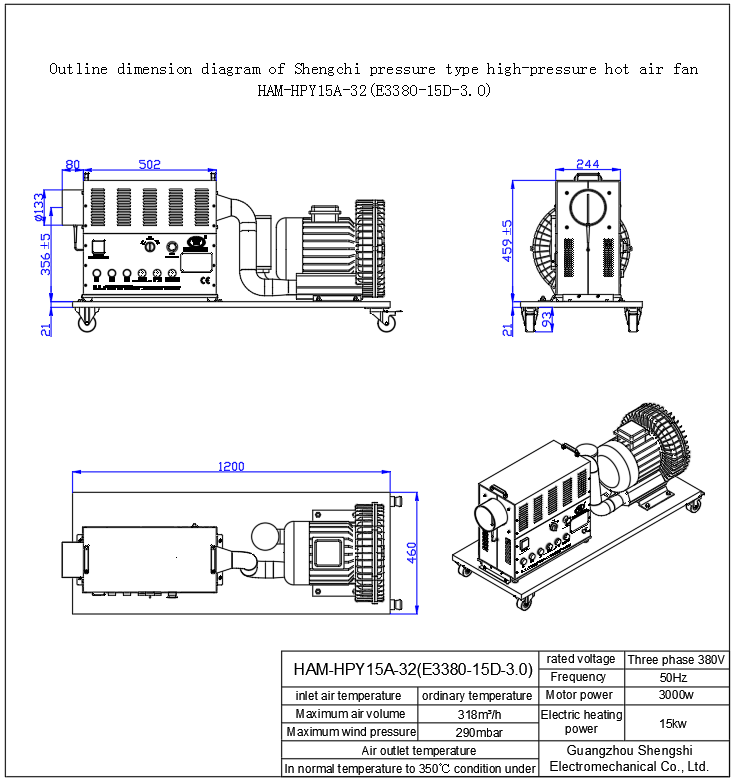

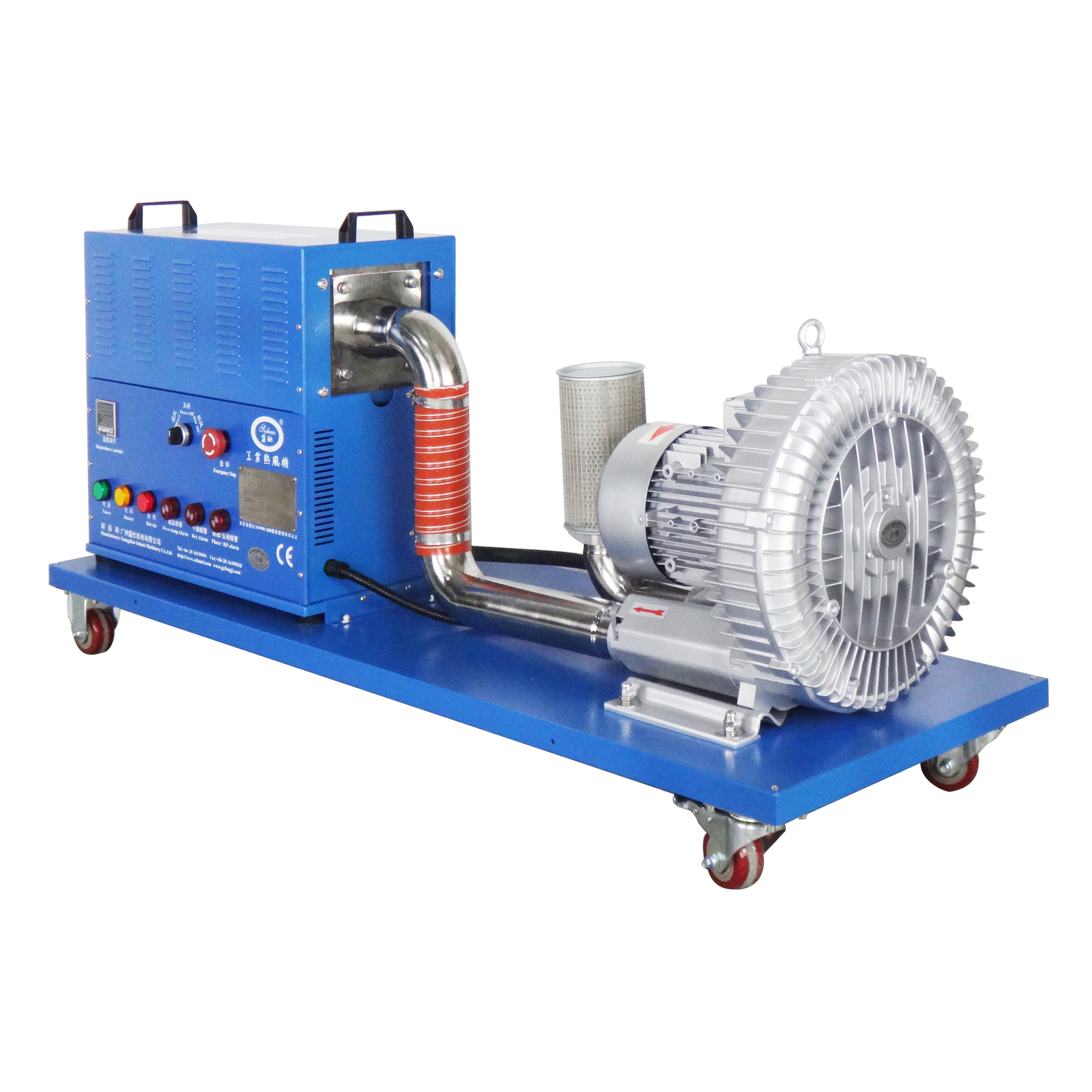

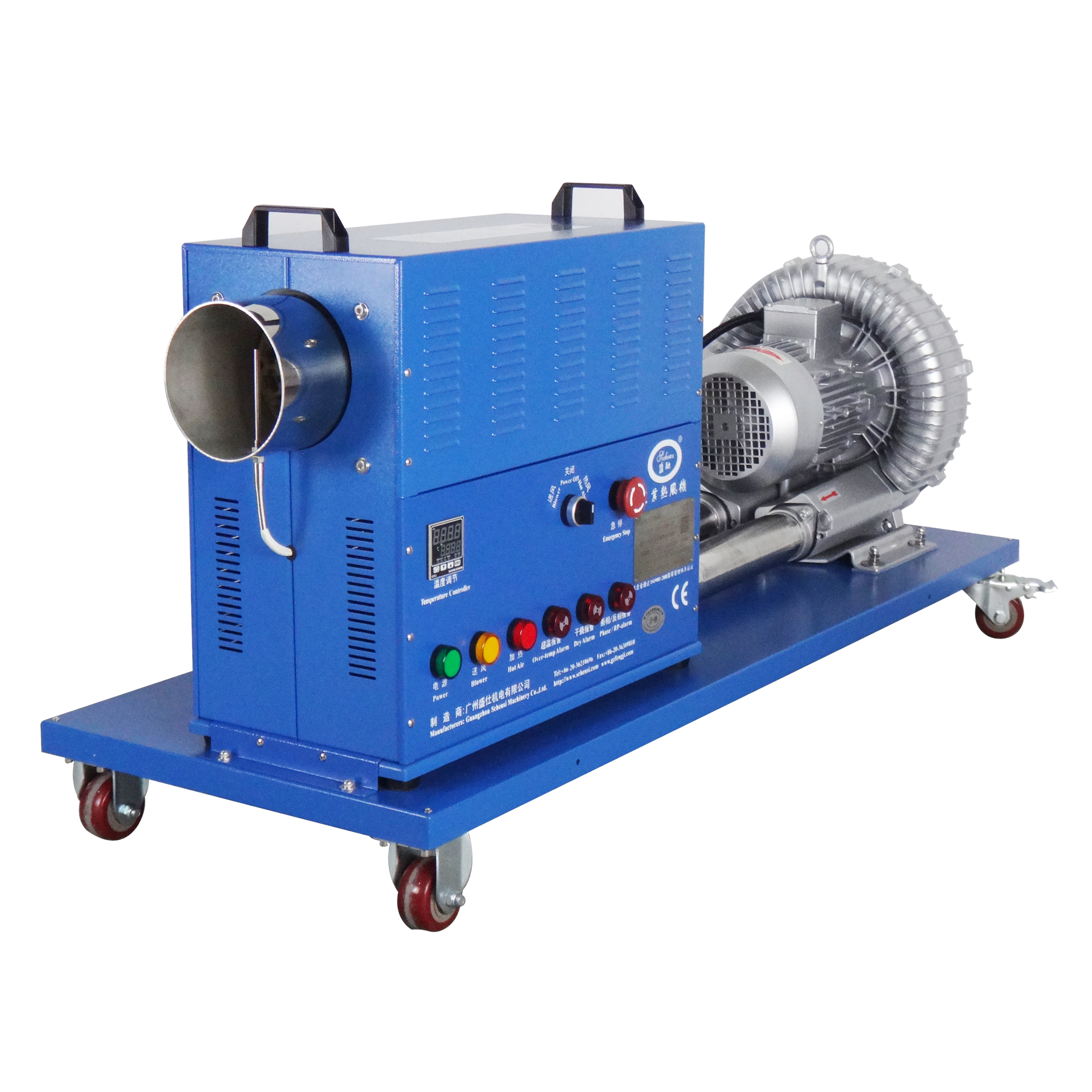

model: HAM-HPY15A-32
specifications: E3380-15D-3.0
Rated voltage: Three phase 380V
frequency: 50Hz
Electric heating power: 15KW
Motor power: 3KW
Air inlet temperature: ordinary temperature
Air outlet temperature: ordinary temperature~350℃
Maximum air volume: 318m3/h
Maximum wind pressure: 2900Pa
Size(L*W*H) : 1200*460*410(mm)
notes: Please inform the local usage voltage and frequency when ordering products. The voltage used in China is ：single-phase 220V/three-phase 380V/frequency 50Hz
